The renderer. More...

#include <Renderer3D.h>

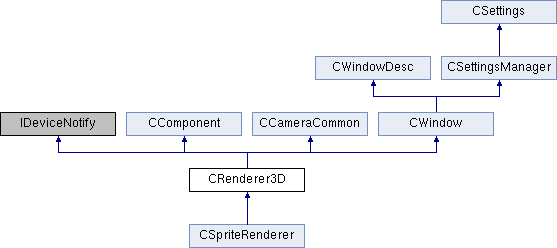

Inheritance diagram for CRenderer3D:

Public Member Functions
	CRenderer3D ()
	Constructor.

virtual	~CRenderer3D ()
	Destructor.

void	Initialize (bool=true)
	Initialize renderer. More...

void	LoadTexture (const char *, CTextureDesc &)
	Load texture. More...

void	LoadTextureFile (const char *, CTextureDesc &)
	Load texture from file. More...

void	BeginResourceUpload ()
	Begin uploading textures. More...

void	EndResourceUpload ()
	End uploading textures. More...

virtual void	BeginFrame ()
	Begin frame. More...

virtual void	EndFrame ()
	End frame. More...

void	SetBgColor (const XMVECTORF32 &)
	Set default background color. More...

void	DrawScreenText (const char *, const Vector2 &, XMVECTORF32=Colors::Black)
	Draw screen text. More...

void	DrawScreenText (const wchar_t *, const Vector2 &, XMVECTORF32=Colors::Black)
	Draw screen text, wide version. More...

void	DrawCenteredText (const char *, XMVECTORF32=Colors::Black)
	Draw centered text. More...

void	DrawCenteredText (const wchar_t *, XMVECTORF32=Colors::Black)
	Draw centered text, wide version. More...

void	SaveScreenShot ()
	Save a screenshot. More...

virtual void	OnDeviceLost () override
	Handler for device lost notification. More...

virtual void	OnDeviceRestored () override
	Handler for device restored notification. More...

Public Member Functions inherited from CWindow
template<typename t0 , typename t1 , typename t2 >
int	WinMain (_In_ HINSTANCE, bool, const t0 &, const t1 &, const t2 &)
	WinMain.

Public Member Functions inherited from CSettingsManager
void	Load ()
	Load game settings. More...

Protected Member Functions
void	CreateDDSTexture (_In_z_ const wchar_t *, CTextureDesc &)
	Load a texture from a DirectDraw surface file (contains mipmaps). More...

void	CreateWICTexture (_In_z_ const wchar_t *, CTextureDesc &)
	Load a texture from a an image file (does not contain mipmaps). More...

void	ProcessTexture (_In_ ComPtr< ID3D12Resource >, CTextureDesc &)
	Process a loaded texture. More...

void	LoadScreenFont ()
	Load screen font. More...

Protected Member Functions inherited from CSettingsManager
void	SetWinSize (int, int)
	Set window size information. More...

Protected Attributes
unique_ptr< GraphicsMemory >	m_pGraphicsMemory
	Pointer to graphics memory.

unique_ptr< DescriptorHeap >	m_pDescriptorHeap
	Pointer to a descriptor heap.

UINT	m_nNumResourceDesc = 0
	Number of resource descriptors in descriptor heap.

unique_ptr< CommonStates >	m_pStates
	Pointer to render state object.

unique_ptr< SpriteBatch >	m_pSpriteBatch
	SpriteBatch object for rendering sprites in screen space (from the DirectXTK).

unique_ptr< PrimitiveBatch< VertexPositionColor > >	m_pPrimitiveBatch
	PrimitiveBatch object from the DirectXTK.

unique_ptr< SpriteBatch >	m_pTextSpriteBatch
	SpriteBatch object for rendering text in screen space.

unique_ptr< SpriteFont >	m_pFont
	Text font.

unique_ptr< DeviceResources >	m_pDeviceResources
	Pointer to device resources.

ID3D12Device *	m_pD3DDevice = nullptr
	Pointer to the D3D device.

ResourceUploadBatch *	m_pResourceUpload = nullptr
	Pointer to the resource upload batch object.

ID3D12GraphicsCommandList *	m_pCommandList = nullptr
	Pointer to the command list.

ID3D12DescriptorHeap *	m_pHeaps [2]
	A pair of pointers to heaps.

RenderTargetState	m_RenderTargetState
	The render target state.

XMVECTORF32	m_f32BgColor = Colors::White
	The default background color.

Additional Inherited Members
Static Protected Attributes inherited from CComponent
static CStepTimer *	m_pStepTimer = &cStepTimer
	Pointer to a step timer. More...

static CRandom *	m_pRandom = &cRandom
	Pointer to a PRNG. More...

static CKeyboard *	m_pKeyboard = &cKeyboard
	Pointer to a keyboard handler. More...

static CXBoxController *	m_pController = &cController
	Pointer to a XBox controller. More...

static CAudio *	m_pAudio = &cAudio
	Pointer to an audio player. More...

Static Protected Attributes inherited from CCameraCommon
static XMFLOAT4X4	m_orient
	Orientation matrix.

static XMFLOAT4X4	m_view
	View matrix.

static XMFLOAT4X4	m_projection
	Projection matrix.

Static Protected Attributes inherited from CWindowDesc
static HWND	m_Hwnd = 0
	Window handle.

static HINSTANCE	m_hInst = 0
	Instance handle.

static bool	m_bExitSizeMove
	User just finished moving/resizing window.

Static Protected Attributes inherited from CSettingsManager
static XMLElement *	m_pXmlSettings = nullptr
	Pointer to the settings tag in the XML settings file.

static float	m_fAspectRatio = 1.0f
	Aspect ratio, width/ht.

Static Protected Attributes inherited from CSettings
static char	m_szName [MAX_PATH]
	Name of this game.

static int	m_nWinWidth = 0
	Window width in pixels.

static int	m_nWinHeight = 0
	Window height in pixels.

static Vector2	m_vWinCenter = Vector2::Zero
	Window center.

Detailed Description

The renderer uses DirectX 12 and DirectXTK 12.

Member Function Documentation

◆ BeginFrame()

void CRenderer3D::BeginFrame ( )

virtual

Must be called at the start of each animation frame to initialize the render pipeline.

Reimplemented in CSpriteRenderer.

◆ BeginResourceUpload()

void CRenderer3D::BeginResourceUpload ( )

Notify the resource upload object that uploading is about to begin.

◆ CreateDDSTexture()

void CRenderer3D::CreateDDSTexture	(	_In_z_ const wchar_t *	szFileName,
		CTextureDesc &	tDesc
	)

protected

Load a texture from a DirectDraw Surface file. Aborts if file not found.

Parameters

szFileName	[in] Wide file name.
tDesc	[out] Descriptor for the texture pointed to by p.

◆ CreateWICTexture()

void CRenderer3D::CreateWICTexture	(	_In_z_ const wchar_t *	szFileName,
		CTextureDesc &	tDesc
	)

protected

Load a texture from a WIC file. Aborts if file not found.

Parameters

szFileName	[in] Wide file name.
tDesc	[out] Texture descriptor.

◆ DrawCenteredText() [1/2]

void CRenderer3D::DrawCenteredText	(	const char *	text,
		XMVECTORF32	color = `Colors::Black`
	)

Draw text to the screen center.

Parameters

text	Null terminated text string.
color	Text color, defaults to black.

◆ DrawCenteredText() [2/2]

void CRenderer3D::DrawCenteredText	(	const wchar_t *	text,
		XMVECTORF32	color = `Colors::Black`
	)

Draw text to the screen center.

Parameters

text	Null terminated wide text string.
color	Text color, defaults to black.

◆ DrawScreenText() [1/2]

void CRenderer3D::DrawScreenText	(	const char *	text,
		const Vector2 &	p,
		XMVECTORF32	color = `Colors::Black`
	)

Draw text to the screen.

Parameters

text	Null terminated text string.
p	position of text.
color	Text color, defaults to black.

◆ DrawScreenText() [2/2]

void CRenderer3D::DrawScreenText	(	const wchar_t *	text,
		const Vector2 &	p,
		XMVECTORF32	color = `Colors::Black`
	)

Draw text to the screen.

Parameters

text	Null terminated wide text string.
p	position of text.
color	Text color, defaults to black.

◆ EndFrame()

void CRenderer3D::EndFrame ( )

virtual

Must be called at the end of each animation frame to render and present the current frame.

Reimplemented in CSpriteRenderer.

◆ EndResourceUpload()

void CRenderer3D::EndResourceUpload ( )

Notify the resource upload object that uploading is over, and wait for any uploads in progress to finish.

◆ Initialize()

void CRenderer3D::Initialize ( bool bUseDepthStencil = true )

Do the necessary voodoo to set up Direct3D 12 rendering.

Parameters

bUseDepthStencil true to use z-buffering.

◆ LoadScreenFont()

void CRenderer3D::LoadScreenFont ( )

protected

Load the font for the screen text from a font file specified in gamesettings.xml.

◆ LoadTexture()

void CRenderer3D::LoadTexture	(	const char *	name,
		CTextureDesc &	tDesc
	)

Load a texture from a file specified in gamesettings.xml. Aborts if gamesettings.xml has not been loaded correctly.

Parameters

name	[in] Name field in a sprite tag.
tDesc	[out] Texture descriptor.

◆ LoadTextureFile()

void CRenderer3D::LoadTextureFile	(	const char *	filename,
		CTextureDesc &	tDesc
	)

Load a texture from a file. Aborts if file not found.

Parameters

filename	[in] File name.
tDesc	[out] Texture descriptor.

◆ OnDeviceLost()

void CRenderer3D::OnDeviceLost ( )

overridevirtual

TODO: fix this, it ain't complete.

◆ OnDeviceRestored()

void CRenderer3D::OnDeviceRestored ( )

overridevirtual

TODO: fix this, it ain't complete.

◆ ProcessTexture()

void CRenderer3D::ProcessTexture	(	_In_ ComPtr< ID3D12Resource >	p,
		CTextureDesc &	tDesc
	)

protected

Given a COM pointer to a texture that has just been loaded using CreateDDSTexture of CreateWICTexture, append it to the end of texture list, create a shader resource view for it, and record the texture's index, resource descriptor index, and dimensions in the texture descriptor.

Parameters

p	[in] Pointer to the D3D12 resource for the texture.
tDesc	[out] Descriptor for the texture pointed to by p.

◆ SaveScreenShot()

void CRenderer3D::SaveScreenShot ( )

Save a screenshot to screenshot0.png, screenshot1.png, etc.

◆ SetBgColor()

void CRenderer3D::SetBgColor ( const XMVECTORF32 & color )

Set the background color.

Parameters

color New background color.
